2012 2 0194746.7 Material Handling Magnets

Product Details

Place of Origin: CN

Brand Name: QHMAG

Certification: CE

Model Number: QEPMA

Payment & Shipping Terms

Minimum Order Quantity: MOQ 1 Set

Price: USD $2,000~$20,000

Packaging Details: Bracket and Wooden Case

Delivery Time: 20-45 days, Depends On The Design

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 10 Sets Per Month

Get Best Price
Contact Now
Specifications
Highlight:

Welding Material Handling Magnets

,

2012 2 0194746.7 Material Handling Magnets

Application:
Magnets For Industrial Automation, Industrial Manipulators And Material Handling, Magnetic Gripper For Automation, Industrial Manipulators And Material Handling
Power:
Electric
Feature:
Remain Holding Even In Power Outage
Quality Guarantee:
1 Year
Certification:
CE, ISO9001
Energy Saving:
Only Use Electric At The Moment Of Clamping And Unclamping
Type:
Welding Clamps Magnets
Material:
Stainless Steel
Application:
Magnets For Industrial Automation, Industrial Manipulators And Material Handling, Magnetic Gripper For Automation, Industrial Manipulators And Material Handling
Power:
Electric
Feature:
Remain Holding Even In Power Outage
Quality Guarantee:
1 Year
Certification:
CE, ISO9001
Energy Saving:
Only Use Electric At The Moment Of Clamping And Unclamping
Type:
Welding Clamps Magnets
Material:
Stainless Steel
Description
2012 2 0194746.7 Material Handling Magnets

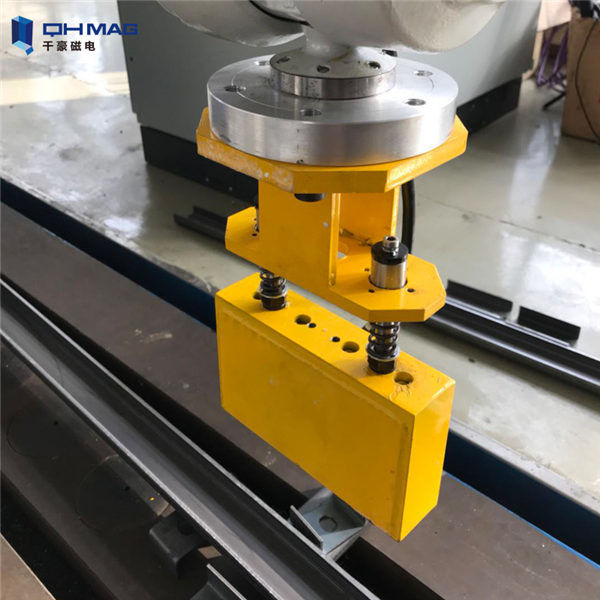

Industrial automation Electro permanent Magnetic Welding Fixture





√  Reaction time is fast,the magnetic field with MAG and DEMAG is only need 0.2s.

  No remaining magnetic force on magnetic pole surface,material can not be magnetised.

  There are no moving parts inside,structure is stable,damage is not easy.

√  Using Non-contact control cabinet,control panel and PLC control,the service lift is

more than 10 million times.

√  Patent No.:ZL 2012 2 0194746.7





1. It only needs electric power to control the magnetic force on/off, when working no need electric power.
2. Combine the safety of permanent and economic of electromagnet
3. with strong magnetic power
4. with PLC interface can work with ROBOT
5. small control box optional





Strong adhesive force for safe processing with unimagined production reserves:
a 5-sided machining in one clamp
minimum set-up times and increase of productivity
increase of tool useful life and process safety





Application



• Transfer lines

• Conveyor lines
• Pick and place equipment
• General engineering
• Robotics
• Packaging machinery
• Palletising/depalletising systems





Advantages of Electro Permanent Magnet



Application:
1. Economical,Energy saving, Environment protection
Electric permanent magnet system only use electricity at the moment of magnetic charging and demagnetization, no need power during working process, no temperature rise, save electricity power more than 95% compared with electromagnet, big reduction of using cost.
Both lifting permanent magnet and control system weights are light, can reduce the lifting equipment load,improve lifting weight.


2. High security
The magnetism of Electro permanent lifting magnet is from 2 kinds of permanent magnetic materials with different natures. Maximum magnetic force is up to 16kgf/cm2.No need electricity power during working, avoid the lifting magnet system magnetic power loss and the risk of sucked material falling down when power sudden failure or connection cable damaged. No attenuation even passed away long time, with great security during using.



3. Easy to use
Electronic control operation only have charge, demagnetization buttons, easy to operate, only use 0.1-1s for magnetization and demagnetization, improved the operation efficiency. There is no wearing parts inside the permanent magnet system, no hydraulic oil, compressed air etc., no specific maintenance, only need to ensure that the surface clean, reliable and durable, no maintenance, and practical.
After demagnetization, the surface remaining magnetic force is almost 0,even if the small magnetic particles will not adsorb on the surface of the magnetic pole, the adsorption will not scratch, will not cause remnants for the adsorption.


4. Unique, Flexible Product Design
The internal of lifting permanent magnet adopt unique modular design,dual magnetic source technology, a unique product manufacturing process, unique internal structure.


5. Perfect function
Electro Permanent Lifting magnet system is very safe, as it is not affected by power loss, no UPS battery auxiliary system. High energy from permanent magnetic materials provide lasting suction, always ensure the safety of materials and to ensure material only can be demagnetized when it is landing, provide the highest level of security to end users.





What is electro permanent magnetic technology?



Electro permanent magnet technology is via electricity to control the magnetic field lines of the permanent magnet material, which express with magnetic force(magnetized state) or non-magnetic force(demagnetized state). It is an innovative application technology that can attract or release material independently.



Magnetized state: Electromagnetic coil with instantaneous excitation current, which control the magnetic field state switching of reversible magnetic material, so that the magnetic field covering the surface of the magnetic poles and bring strong adsorption force. As the magnetic field form a closed loop,no magnetic loss, work with no heat, no noise, no energy consumption features(as shown in Figure 1.1)



Demagnetized state:in the magnetized state, the electromagnetic coil once again instantaneous excitation current, the built- in circuit to change the reversible magnetic field, so that the magnetic field converged inside the permanent magnet, and the magnetic pole surface no longer have magnetic field, the material is released( as shown in Figure 1.2)





2012 2 0194746.7 Material Handling Magnets 0







Steel Material Data
Steel Plate Rectangle shape Length mm , Width mm , Thickness mm Each time Lifting piece
Steel Slab A . Horizontal lifting B. Side lifting
  Abnormal shape Length mm, Width mm , Thickness mm Each time Lifting piece
  Shape size ( suggest provide drawing ) A. Horizontal lifting B. Side lifting
Steel Pipe Single piece Length mm, Diameter φ mm, Wall thickness mm Each time Lifting piece
Steel Bar A. Horizontal lifting B. Side lifting
  A bundle Single piece length mm, Bundle length mm, Each time Lifting bundle
  Bundle diameter φ mm, Bundle gap mm Tie material , Width mm , Thickness mm .
Steel Roll coil ID φ mm, OD φ mm, Width mm, Thickness mm Tightness : A. Loose Roll B. Tight Roll Each time Lifting bundle
Tie material , Width mm, Thickness mm .
Section/Irregular Steel Model/specification Adsorption Position
Provide drawings to us if available Adsorption Quantity
Material detail Steel material Steel temperature
Air Gap mm Lifting Material Weight kg Stacking/bundle height mm
Crane Data
Rated lifting weight Ton Big trolley length m
Rated lifting height m Hooks quantity Quantity Pieces, Distance m/each hook
Beam span M, The lowest point of the hook to the trolley motor distance m
Operating Data
Operating environment Temperature Humidity % Operating Place : A. Indoor B. Outdoor
Control method A. Panel control B. PLC Control C. Remote Control D. Wire control E. Cab Control
Input voltage AC 380V /AC 220V /DC V
