Technology Leads the Future, Innovation Drives Development
| Place of Origin: | CN |
|---|---|
| Brand Name: | QHMAG |
| Certification: | CE |
| Model Number: | QEPM-COIL |
| Minimum Order Quantity: | MOQ 1 Set |
| Price: | USD $1,000~$10,000 |
| Packaging Details: | Bracket and Wooden Case |
| Delivery Time: | 15-45 days, Depends On The Design |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 Sets Per Month |
| Application: | For Industrial Steel Coil Lifting | Main Material: | EPM |
|---|---|---|---|
| Feature: | Reliable Force | Dimension(L*W*H): | Customized, Based On Working Condition |
| Quality Guarantee: | 1 Year | Certification: | CE, ISO9001 |
| Voltage: | 220V/240V/360V/440V | Color: | Default Yellow, Customized |
| Safety Factor: | 3 Times | ||
| High Light: | EPM magnetic lifting device,300kg magnetic lifting device,Steel Coil magnetic lifter 300kg |
||

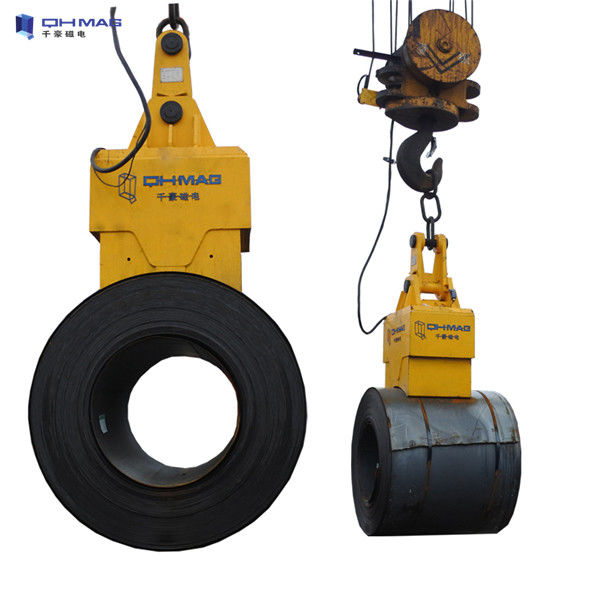

Permenent Magnetic Lifter For Hot Steel Roll Coil Magnetic Lifting Device
What is electro permanent magnetic technology ?
Loading Capacity: customized or 300kg
Electro permanent magnet technology is via electricity to control the magnetic field lines of the permanent magnet material, which express with magnetic force(magnetized state) or non-magnetic force(demagnetized state). It is an innovative application technology that can attract or release material independently.
Magnetized state: Electromagnetic coil with instantaneous excitation current, which control the magnetic field state switching of reversible magnetic material, so that the magnetic field covering the surface of the magnetic poles and bring strong adsorption force. As the magnetic field form a closed loop,no magnetic loss, work with no heat, no noise, no energy consumption features(as shown in Figure 1.1)
Demagnetized state:in the magnetized state, the electromagnetic coil once again instantaneous excitation current, the built- in circuit to change the reversible magnetic field, so that the magnetic field converged inside the permanent magnet, and the magnetic pole surface no longer have magnetic field, the material is released.
| Electro Permanent Magnet VS Electromagnet | |||
| SEQ | Compare content | Electro Permanent Lifting Magnet | Electromagnet |
| 1 | Magnetic source | Permanent magnet Material: Reversible magnet steel, fixed magnet | Electricity: Magnetic field generated by Current through the coil |
| 2 | Principle mechanism | The magnetic field is turned on or off by an instantaneous current | Power on generated magnetic field, power off no magnetic field |
| 3 | Security | All steel surface, oil&water -proof, no aging issue | Epoxy resin sealed, may occur aging and shedding issue in 5years later, need repair |
| 4 | Reliability | The suction is constant and does not attenuate over time | Suction is influenced by the heat caused by current, the coil is easy aging if use long time |
| 5 | Durability and maintenance | Permanent magnet no magnetic attenuation, magnetic module is maintenance-free. | Internal coil aging fast, the UPS battery need to be replaced regularly, need to prepare the accessories. |
| 6 | Operating costs | Only in the moment of magnetization and demagnetization need electricity, no need power,during working ,save energy more than 95% | Need long-term electricity power during working, big power consumption, commonly known as “electric tiger” |
Magnetic Lifter components
1. Electro permanent magnet
the core part of magnetic force, direct contact and adsorption of the work piece
2. Control System(including sound and light indicating system)
Control magnetization/demagnetization, collection and processing of all signals
2.1 Controller for long distance(optional)
Mini control cabinet used in Crane Cab or other compact location
2.2 Remote Controller (optional)
Mini control cabinet used in Crane Cab or other compact location
3. Cable retracting device
Pull in & out reel to release & collect cable
Remark: All of our product is customized as customer's requirements,pls let me know all details about the lifting material and lifting method,then we can quote you price and working on solution drawing for your reference.
Pls find below pre-sale data sheet and complete it and return to me,thanks for your cooperation.
|
Steel Material Data |
||||
|
Steel Plate
Steel Slab |
Rectangle shape |
Length mm , Width mm , Thickness mm |
Each time Lifting piece A . Horizontal lifting B. Side lifting |
|
|
|
|
|||
|
Abnormal shape |
Length mm, Width mm , Thickness mm Shape size ( suggest provide drawing ) |
Each time Lifting piece A. Horizontal lifting B. Side lifting |
||
|
|
||||
|
Steel Pipe
Steel Bar |
Single piece |
Length mm, Diameter φ mm, Wall thickness mm |
Each time Lifting piece A. Horizontal lifting B. Side lifting |
|
|
A bundle |
Single piece length mm, Bundle length mm, Bundle diameter φ mm, Bundle gap mm
|
Each time Lifting bundle Tie material , Width mm , Thickness mm . |
||
|
Steel Roll coil |
ID φ mm, OD φ mm, Width mm, Thickness mm Tightness : A. Loose Roll B. Tight Roll |
Each time Lifting bundle Tie material , Width mm, Thickness mm . |
||
|
Section/Irregular Steel |
Model/specification Provide drawings to us if available |
Adsorption Position Adsorption Quantity |
||
|
Material detail |
Steel material Steel temperature ℃ Air Gap mm Lifting Material Weight kg Stacking/bundle height mm |
|||
|
Crane Data |
||||
|
Rated lifting weight |
Ton |
Big trolley length |
m |
|
|
Rated lifting height |
m |
Hooks quantity |
Quantity Pieces, Distance m/each hook |
|
|
Beam span |
M, The lowest point of the hook to the trolley motor distance m |
|||
|
Operating Data |
||||
|
Operating environment |
Temperature ℃ Humidity % Operating Place : A. Indoor B. Outdoor |
|||
|
Control method |
A. Panel control B. PLC Control C. Remote Control D. Wire control E. Cab Control |
|||
|
Input voltage |
AC 380V /AC 220V /DC V |
|||
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
2. What's the Difference Between Electromagnet and Electro-permanent magnet?
Both industrial magnets are electrically switched on/off. The main difference lies in 2 points.
First, electromagnet works on consistent electric power; if cutting off the power supply suddenly, it losses magnetic force. What distinguishes electro-permanent magnet from electromagnet is that the former does not use electricity during working. If cutting off the power, it can remain holding/lifting/gripping/clamping of the load.
Second, due to continuous power input, electromagnet has heat generation which might affect its workholding effectiveness during machining. Whereas that is no problem to EPM.
3. How about the warranty ?
We have 1 year warranty and lifelong maintenance.
4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
