500-3000kg Permanent Electromagnetic Lifting Magnet For Multiple Steel Plate

Product Details

Place of Origin: CN

Brand Name: QHMAG

Certification: CE

Model Number: QERM-1T

Payment & Shipping Terms

Minimum Order Quantity: MOQ 1 Set

Price: USD $2,000~$10,000

Packaging Details: Bracket and Wooden Case

Delivery Time: 15-45 days, Depends On The Design

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 5 Sets Per Month

Get Best Price
Contact Now
Specifications
Highlight:

Permanent electromagnetic lifting magnet

,

3000kg electromagnetic lifting magnet

,

Electromagnetic pml magnet

Application:
Lifting Steel Billets,metal Sheet, Plate,coil,rail
Main Material:
EPM
Feature:
Battery Supply And Remote Control
Capacity:
500-3000kg
Quality Guarantee:
1 Year
Certification:
ISO, CE
Electrical Voltage:
Clients Local Standard
Safety:
Magnetic Force Exist At Same Level During Power Failure Time
Source Of The Magnetic:
Generated By Permanent Magnet Material :NdFeB, AlNiCo
Application:
Lifting Steel Billets,metal Sheet, Plate,coil,rail
Main Material:
EPM
Feature:
Battery Supply And Remote Control
Capacity:
500-3000kg
Quality Guarantee:
1 Year
Certification:
ISO, CE
Electrical Voltage:
Clients Local Standard
Safety:
Magnetic Force Exist At Same Level During Power Failure Time
Source Of The Magnetic:
Generated By Permanent Magnet Material :NdFeB, AlNiCo
Description

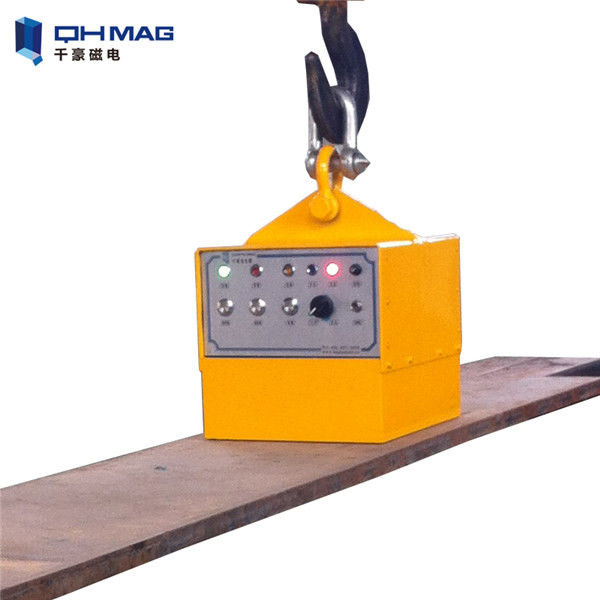

500-3000kg Permanent Electromagnetic Lifting Magnet For Multiple Steel Plate

Customized Battery Powered Controlled Permanent Lifting Magnet For Multiple Steel Plate



Loading Capacity: customized or 500-3000kg



Steel plate, especially small and heavy one, are particularly difficult load to handle, when attempting to move with traditional method(Hook, chain, cable), plates has a tendency to flex and deform, making the lifting period become dangerous and unstable.
This series of products specially designed for transporting small and thick steel, even when power is cut off, it will not loses magnetism, energy efficient characteristics, safe and reliable handling.





Inspection essentials for electric permanent lifting magnets
In order to improve the service life of the electric permanent magnet and make it better suited to the harsh working conditions, the parts of the electric permanent magnet except the outlet box are all sealed and welded. However, due to long-term use, some damage may occur. Please check it regularly and deal with it in time to record the cause and result.





Remark:

All of our product is customized as customer's requirements,pls let me know all details about the lifting material and lifting method,then we can quote you price and working on solution drawing for your reference.

Pls find below pre-sale data sheet and complete it and return to me,thanks for your cooperation.



Battery Rechargeable Magnetic Lifter Drawing :

500-3000kg Permanent Electromagnetic Lifting Magnet For Multiple Steel Plate 0





 Steel Material Data



Steel Plate



Steel Slab

Rectangle shape

Length mm , Width mm , Thickness mm

Each time Lifting piece

A . Horizontal lifting                   B. Side lifting





Abnormal shape

Length mm,   Width mm , Thickness mm

Shape size ( suggest provide drawing )

Each time Lifting piece

A. Horizontal lifting B. Side lifting





Steel Pipe



Steel Bar

Single piece

Length mm, Diameter φ mm, Wall thickness mm

Each time Lifting piece

A. Horizontal lifting                     B. Side lifting

A bundle

Single piece length mm,     Bundle length mm,

Bundle diameter φ mm,    Bundle gap mm



Each time Lifting bundle

Tie material , Width mm , Thickness mm .

Steel Roll coil

ID φ mm,    OD φ mm,    Width mm, Thickness mm Tightness : A.  Loose Roll B. Tight Roll

Each time Lifting bundle

Tie material ,  Width mm,    Thickness mm .

Section/Irregular Steel

Model/specification

Provide drawings to us if available

Adsorption Position

Adsorption Quantity

Material detail

Steel material Steel temperature

Air Gap mm           Lifting Material Weight kg           Stacking/bundle height mm

Crane Data

Rated lifting weight

Ton

Big trolley length

m

Rated lifting height

m

Hooks quantity

Quantity Pieces, Distance m/each hook

Beam span

M, The lowest point of the hook to the trolley motor distance m

Operating Data

Operating environment

Temperature Humidity %                                Operating Place :  A. Indoor                 B.  Outdoor

Control method

A. Panel control                B.   PLC Control           C.  Remote Control               D.  Wire control              E.  Cab Control

Input voltage

AC 380V               /AC 220V              /DC V



FAQ

1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.


2. What's the Difference Between Electromagnet and Electro-permanent magnet?
Both industrial magnets are electrically switched on/off. The main difference lies in 2 points.
First, electromagnet works on consistent electric power; if cutting off the power supply suddenly, it losses magnetic force. What distinguishes electro-permanent magnet from electromagnet is that the former does not use electricity during working. If cutting off the power, it can remain holding/lifting/gripping/clamping of the load.
Second, due to continuous power input, electromagnet has heat generation which might affect its workholding effectiveness during machining. Whereas that is no problem to EPM.



3. How about the warranty ?
We have 1 year warranty and lifelong maintenance.


4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
