Technology Leads the Future, Innovation Drives Development
| Place of Origin: | CN |
|---|---|
| Brand Name: | QHMAG |
| Certification: | CE |
| Model Number: | QEPM-COIL |
| Minimum Order Quantity: | MOQ 1 Set |
| Price: | USD $1,000~$10,000 |
| Packaging Details: | Bracket and Wooden Case |
| Delivery Time: | 15-45 days, Depends On The Design |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 Sets Per Month |
| Usage: | Lifting Steel Coil | Main Components: | Permanent Magnetic Lifter And Controller |
|---|---|---|---|
| Feature: | Remain Holding Even In Power Outage | Controller: | Remote Controller |
| Quality Guarantee: | 1 Year | Certification: | CE, ISO9001 |
| Operating Temperature: | Max. 80 Degree | Color: | Default Yellow, Customized |
| Safety Factor: | 3:1 | ||
| High Light: | 20ton Permanent Magnetic Lifter,Steel Coil Permanent Magnetic Lifter,Magnetic industrial lifting equipment |
||

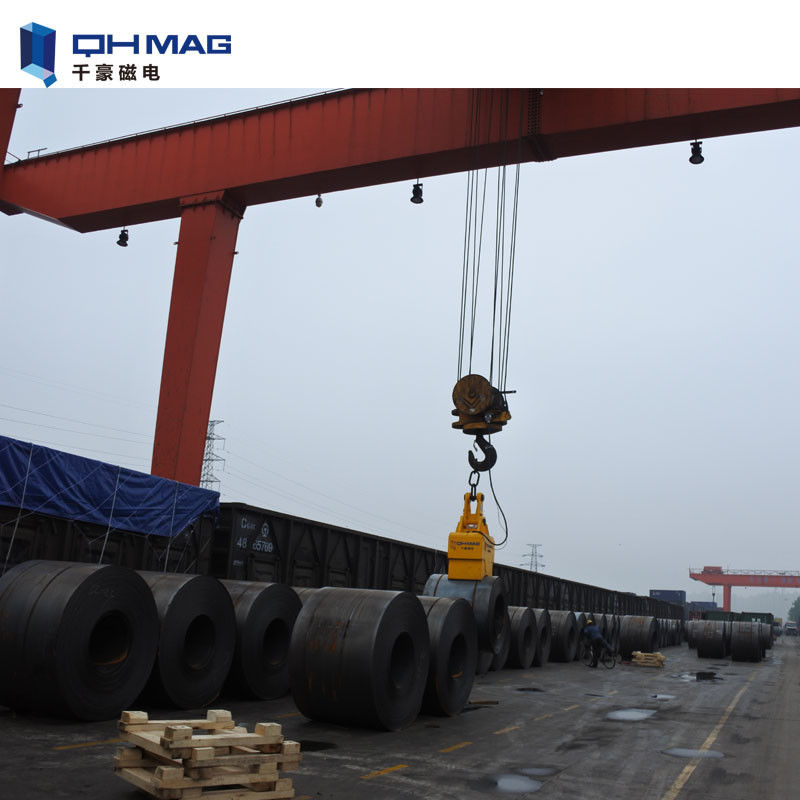

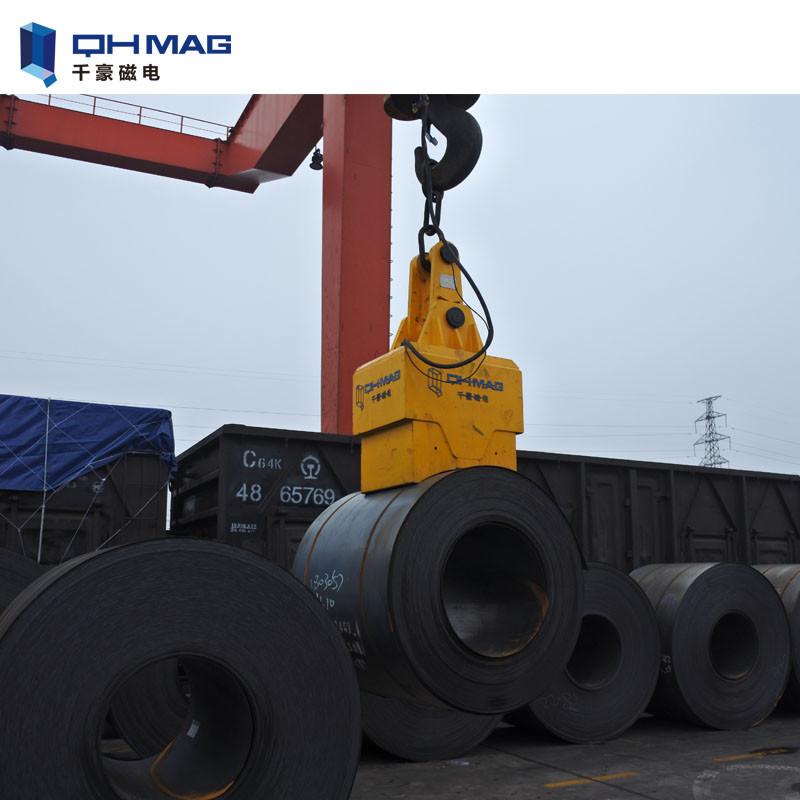

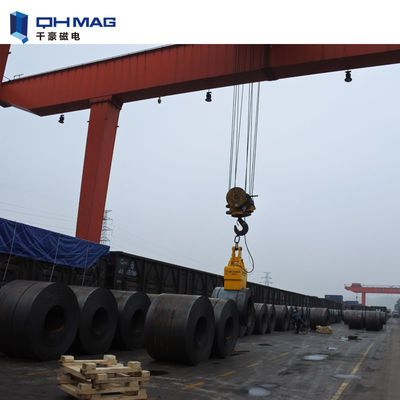

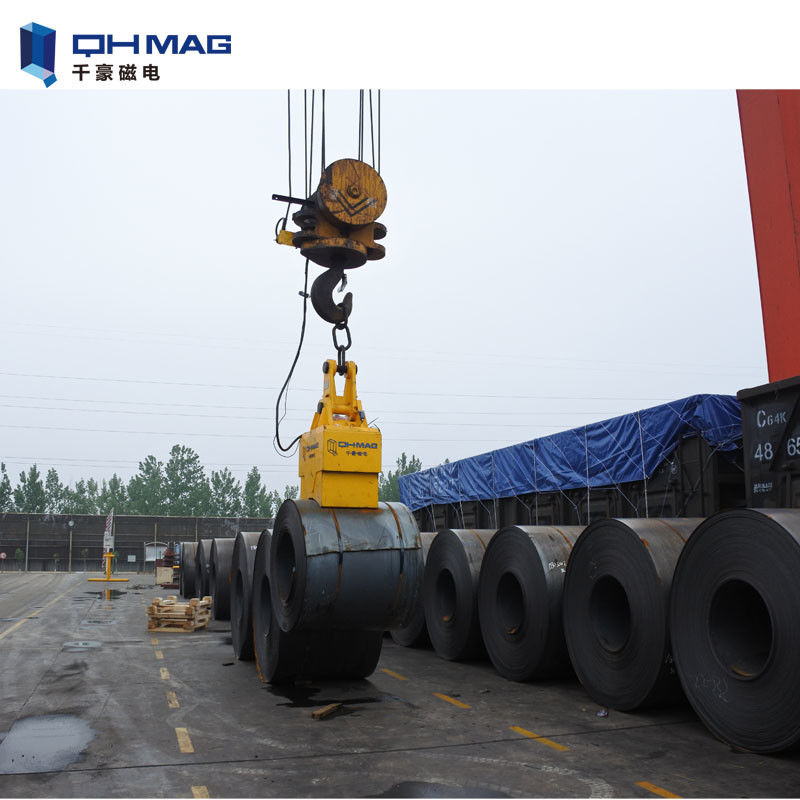

Industrial Permanent Magnetic Lifter Equipment For Lifting Steel Coil
| Single piece of 20ton steel roll coil lifting . |
| Support lifting if the steel with some disturbance deformation |
| Large magnetic permeability depth,adsorption is more stable |
| The coil material is not compressed and dammaged while lifting, which is the case when using traditional coil grippers. |

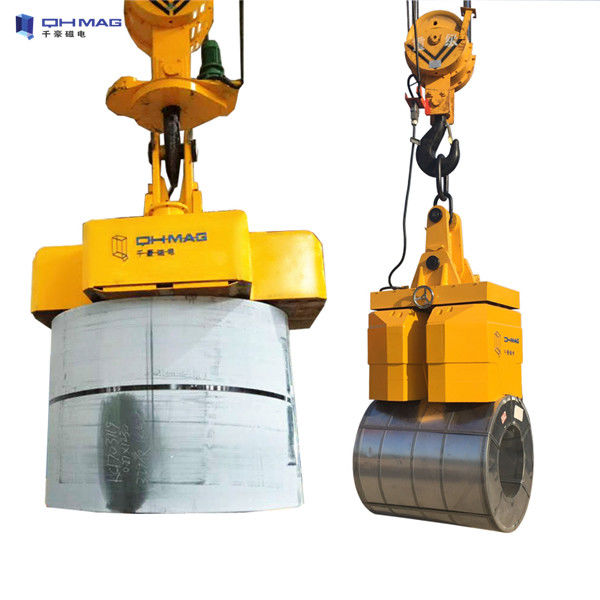

| This complete range of small electromagnet modules is specially designed for quick and safe handling of coils, with horizontal or vertical eye. |
This kind of small electromagnet, using a special magnetic structure, apply to lifting a single,or a layer of bar,pipe,and not be lifting surfaces(such as paints,coatings) have any injury.
This complete range of small electromagnet modules is specially designed for quick and safe handling of coils, with horizontal or vertical eye.
Permanent Magnetic Lifter components
1. Electro permanent magnet lifter
the core part of magnetic force, direct contact and adsorption of the work piece
2. Control System(including sound and light indicating system)
Control magnetization/demagnetization, collection and processing of all signals
2.1 Controller for long distance(optional)
Mini control cabinet used in Crane Cab or other compact location
2.2 Remote Controller (optional)
Mini control cabinet used in Crane Cab or other compact location
3. Cable retracting device
Pull in & out reel to release & collect cable
Electro permanent magnet advantages
1. Economical,Energy saving, Environment protection
Electro permanent lifting magnet just need electricity in 0.2-3 seconds MAG &DEMAG period, the electricity consumption is momentary,during other time, no need any electricity to support the lifting. Can remain holding of plate without electricity
2. High security
The magnetism of Electro permanent lifting magnet is from 2 kinds of permanent magnetic materials with different natures. Maximum magnetic force is up to 16kgf/cm2.No need electricity power during working, avoid the lifting magnet system magnetic power loss and the risk of sucked material falling down when power sudden failure or connection cable damaged. No attenuation even passed away long time, with great security during using.
3. Easy operation
Only need one operator to handle our electro permanent lifting magnet system. With remote control, the operator can stand on the floor or in crane electrical cabinet to handle the lifting process.It is flexible.Try to think, when the weather is very hot? When is rainy? How perfect for the operator to handle!
4. Unique, Flexible Product Design
The internal of lifting permanent magnet adopt unique modular design,dual magnetic source technology, a unique product manufacturing process, unique internal structure.
5. Perfect function
Electro Permanent Lifting magnet system is very safe, as it is not affected by power loss, no UPS battery auxiliary system. High energy from permanent magnetic materials provide lasting suction, always ensure the safety of materials and to ensure material only can be demagnetized when it is landing, provide the highest level of security to end users.
Application
Remark: All of our product is customized as customer's requirements,pls let me know all details about the lifting material and lifting method,then we can quote you price and working on solution drawing for your reference.
Pls find below pre-sale data sheet and complete it and return to me,thanks for your cooperation.
|
Steel Material Data |
||||
|
Steel Plate
Steel Slab |
Rectangle shape |
Length mm , Width mm , Thickness mm |
Each time Lifting piece A . Horizontal lifting B. Side lifting |
|
|
|
|
|||
|
Abnormal shape |
Length mm, Width mm , Thickness mm Shape size ( suggest provide drawing ) |
Each time Lifting piece A. Horizontal lifting B. Side lifting |
||
|
|
||||
|
Steel Pipe
Steel Bar |
Single piece |
Length mm, Diameter φ mm, Wall thickness mm |
Each time Lifting piece A. Horizontal lifting B. Side lifting |
|
|
A bundle |
Single piece length mm, Bundle length mm, Bundle diameter φ mm, Bundle gap mm
|
Each time Lifting bundle Tie material , Width mm , Thickness mm . |
||
|
Steel Roll coil |
ID φ mm, OD φ mm, Width mm, Thickness mm Tightness : A. Loose Roll B. Tight Roll |
Each time Lifting bundle Tie material , Width mm, Thickness mm . |
||
|
Section/Irregular Steel |
Model/specification Provide drawings to us if available |
Adsorption Position Adsorption Quantity |
||
|
Material detail |
Steel material Steel temperature ℃ Air Gap mm Lifting Material Weight kg Stacking/bundle height mm |
|||
|
Crane Data |
||||
|
Rated lifting weight |
Ton |
Big trolley length |
m |
|
|
Rated lifting height |
m |
Hooks quantity |
Quantity Pieces, Distance m/each hook |
|
|
Beam span |
M, The lowest point of the hook to the trolley motor distance m |
|||
|
Operating Data |
||||
|
Operating environment |
Temperature ℃ Humidity % Operating Place : A. Indoor B. Outdoor |
|||
|
Control method |
A. Panel control B. PLC Control C. Remote Control D. Wire control E. Cab Control |
|||
|
Input voltage |
AC 380V /AC 220V /DC V |
|||
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
2. What's the Difference Between Electromagnet and Electro-permanent magnet?
Both industrial magnets are electrically switched on/off. The main difference lies in 2 points.
First, electromagnet works on consistent electric power; if cutting off the power supply suddenly, it losses magnetic force. What distinguishes electro-permanent magnet from electromagnet is that the former does not use electricity during working. If cutting off the power, it can remain holding/lifting/gripping/clamping of the load.
Second, due to continuous power input, electromagnet has heat generation which might affect its workholding effectiveness during machining. Whereas that is no problem to EPM.
3. How about the warranty ?
We have 1 year warranty and lifelong maintenance.
4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
