Place of Origin: | CN |
---|---|
Brand Name: | QHMAG |
Certification: | CE |
Model Number: | QERM-1T |
Minimum Order Quantity: | MOQ 1 Set |
Price: | USD $2,000~$10,000 |
Packaging Details: | Bracket and Wooden Case |
Delivery Time: | 15-45 days, Depends On The Design |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 5 Sets Per Month |
Application: | Lifting Steel Billets,metal Sheet, Plate,coil,rail | Main Material: | EPM |
---|---|---|---|
Feature: | Battery Supply And Remote Control | Dimension(L*W*H): | Customized, Based On Working Condition |
Quality Guarantee: | 1 Year | Certification: | ISO, CE |
Core Components: | Magnet And Control System | Safety: | Magnetic Force Exist At Same Level During Power Failure Time |
Source Of The Magnetic: | Generated By Permanent Magnet Material :NdFeB, AlNiCo | ||
High Light: | billets pml magnetic lifter,2 ton pml magnetic lifter,EPM lifter magnet |

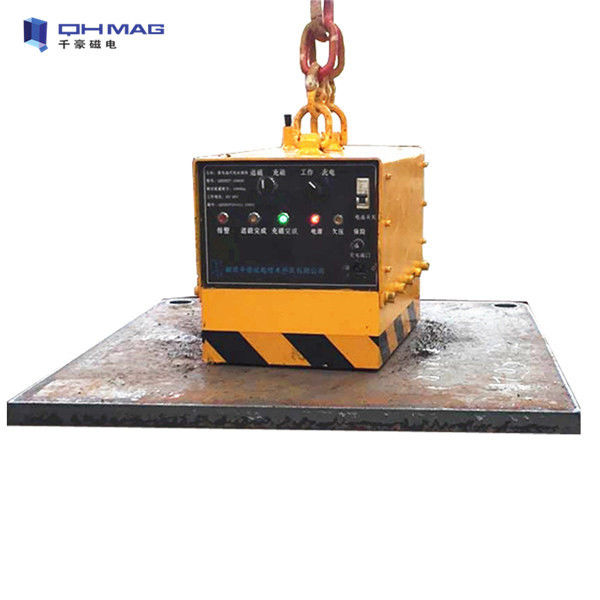

Customized Battery Supply Steel Magnetic Lifter For Lifting Iron Plate
Loading Capacity: customized or 20000lbs
Application:
For handling steel plate,metal sheet, billets,T shape beam and etc,Perfect for outdoor use where electricity from mobilecrane is limited.
①— NdFeB,the strongest magnetic permanent magnet
②— Alnico,change N/S pole direction through the electrical coil
③— Electrical coil,change the N/S pole direction of Alnico
④— Magnetic Pole,strong holding material when magnetizing
⑤— Electro Permanent Lifting Magnet,Assembly made of magnets, coils, and magnetic poles
⑥— Magnetic induction line, analog magnetic field curve
⑦— Adsorbed steel material
What is the bettery electro permanent lifting magnets?
This device use electro-permanent lifting magnet body, maintenance-free batteries and special controller. The controller uses the most advanced electronic circuits, non-contact, can quickly set up eight parameters, such as the intensity of magnetization, magnetizing time, using remote control.

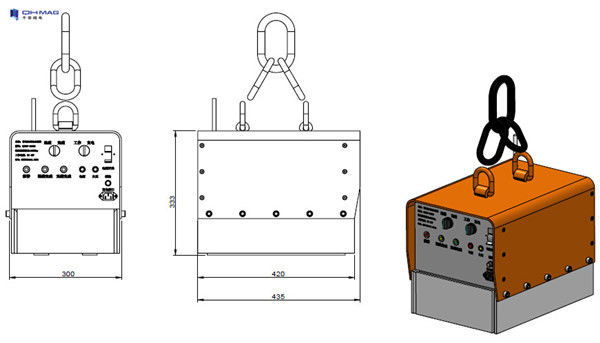

Battery Rechargeable Magnetic Lifter Drawing :
Product Description
The controller uses the most advanced electronic circuits, non-contact, can quickly set up eight parameters, such as the intensity of magnetization, magnetizing time, using remote control. Batteries only work in the moment of magnetization and demagnetization. During the lifting and handling, the HBEP magnets will no longer the consumption of energy. So the HBEP magnet has obvious advantage of energy saving .They can be widely used without power or access to power inconvenient forum, toxic, radioactive and other environment ,through remote control.The batteries can work 7 to 9 days and their charge state can be real-time monitored.
Electro permanent magnet advantages
1. Economical,Energy saving, Environment protection
Electric permanent magnet system only use electricity at the moment of magnetic charging and demagnetization, no need power during working process, no temperature rise, save electricity power more than 95% compared with electromagnet, big reduction of using cost.
Both lifting permanent magnet and control system weights are light, can reduce the lifting equipment load,improve lifting weight.
2. High security
The magnetism of Electro permanent lifting magnet is from 2 kinds of permanent magnetic materials with different natures. Maximum magnetic force is up to 16kgf/cm2.No need electricity power during working, avoid the lifting magnet system magnetic power loss and the risk of sucked material falling down when power sudden failure or connection cable damaged. No attenuation even passed away long time, with great security during using.
3. Easy to use
Electronic control operation only have charge, demagnetization buttons, easy to operate, only use 0.1-1s for magnetization and demagnetization, improved the operation efficiency. There is no wearing parts inside the permanent magnet system, no hydraulic oil, compressed air etc., no specific maintenance, only need to ensure that the surface clean, reliable and durable, no maintenance, and practical.
After demagnetization, the surface remaining magnetic force is almost 0,even if the small magnetic particles will not adsorb on the surface of the magnetic pole, the adsorption will not scratch, will not cause remnants for the adsorption.
4. Unique, Flexible Product Design
The internal of lifting permanent magnet adopt unique modular design,dual magnetic source technology, a unique product manufacturing process, unique internal structure.
5. Perfect function
Electro Permanent Lifting magnet system is very safe, as it is not affected by power loss, no UPS battery auxiliary system. High energy from permanent magnetic materials provide lasting suction, always ensure the safety of materials and to ensure material only can be demagnetized when it is landing, provide the highest level of security to end users.

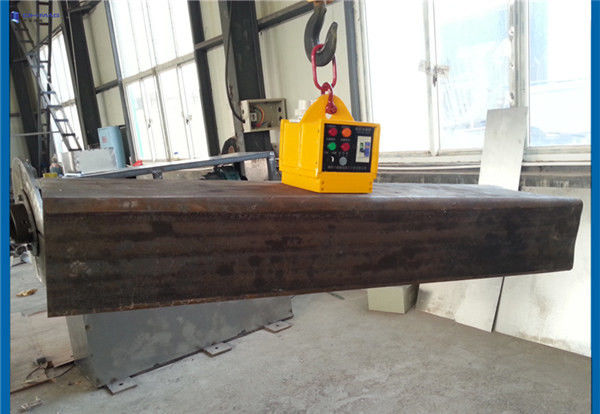

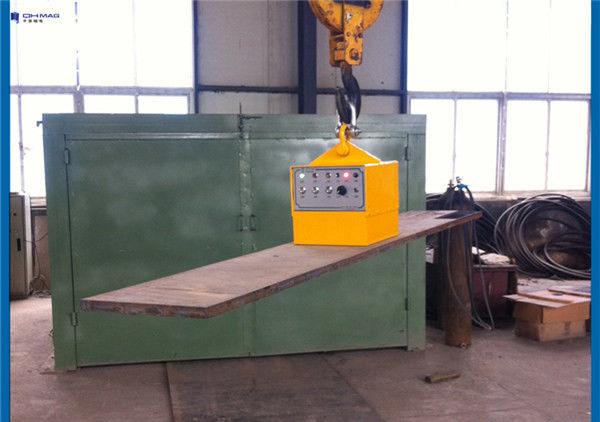

Application
Remark: All of our product is customized as customer's requirements,pls let me know all details about the lifting material and lifting method,then we can quote you price and working on solution drawing for your reference.
Pls find below pre-sale data sheet and complete it and return to me,thanks for your cooperation.
Steel Material Data |
||||
Steel Plate
Steel Slab |
Rectangle shape |
Length mm , Width mm , Thickness mm |
Each time Lifting piece A . Horizontal lifting B. Side lifting |
|
|
|
|||
Abnormal shape |
Length mm, Width mm , Thickness mm Shape size ( suggest provide drawing ) |
Each time Lifting piece A. Horizontal lifting B. Side lifting |
||
|
||||
Steel Pipe
Steel Bar |
Single piece |
Length mm, Diameter φ mm, Wall thickness mm |
Each time Lifting piece A. Horizontal lifting B. Side lifting |
|
A bundle |
Single piece length mm, Bundle length mm, Bundle diameter φ mm, Bundle gap mm
|
Each time Lifting bundle Tie material , Width mm , Thickness mm . |
||
Steel Roll coil |
ID φ mm, OD φ mm, Width mm, Thickness mm Tightness : A. Loose Roll B. Tight Roll |
Each time Lifting bundle Tie material , Width mm, Thickness mm . |
||
Section/Irregular Steel |
Model/specification Provide drawings to us if available |
Adsorption Position Adsorption Quantity |
||
Material detail |
Steel material Steel temperature ℃ Air Gap mm Lifting Material Weight kg Stacking/bundle height mm |
|||
Crane Data |
||||
Rated lifting weight |
Ton |
Big trolley length |
m |
|
Rated lifting height |
m |
Hooks quantity |
Quantity Pieces, Distance m/each hook |
|
Beam span |
M, The lowest point of the hook to the trolley motor distance m |
|||
Operating Data |
||||
Operating environment |
Temperature ℃ Humidity % Operating Place : A. Indoor B. Outdoor |
|||
Control method |
A. Panel control B. PLC Control C. Remote Control D. Wire control E. Cab Control |
|||
Input voltage |
AC 380V /AC 220V /DC V |
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
2. What's the Difference Between Electromagnet and Electro-permanent magnet?
Both industrial magnets are electrically switched on/off. The main difference lies in 2 points.
First, electromagnet works on consistent electric power; if cutting off the power supply suddenly, it losses magnetic force. What distinguishes electro-permanent magnet from electromagnet is that the former does not use electricity during working. If cutting off the power, it can remain holding/lifting/gripping/clamping of the load.
Second, due to continuous power input, electromagnet has heat generation which might affect its workholding effectiveness during machining. Whereas that is no problem to EPM.
3. How about the warranty ?
We have 1 year warranty and lifelong maintenance.
4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
